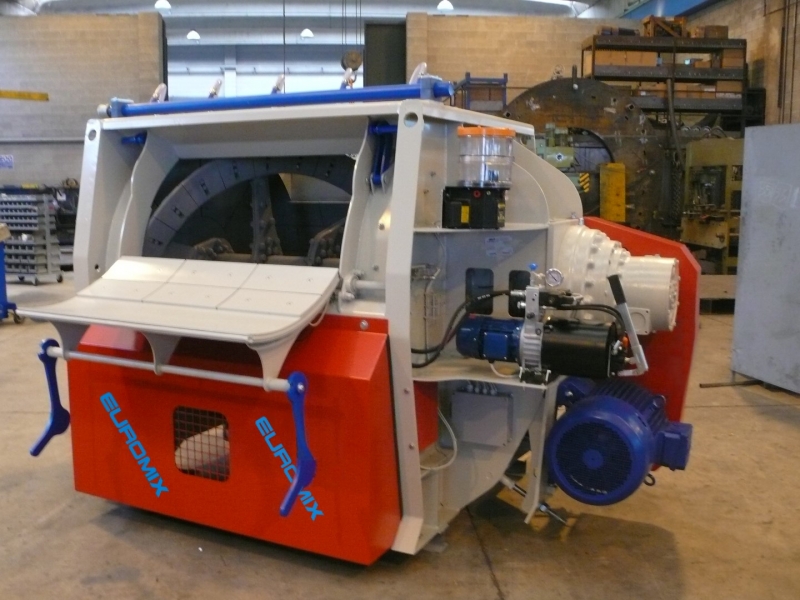

THE SINGLE-SHAFT MIXERS

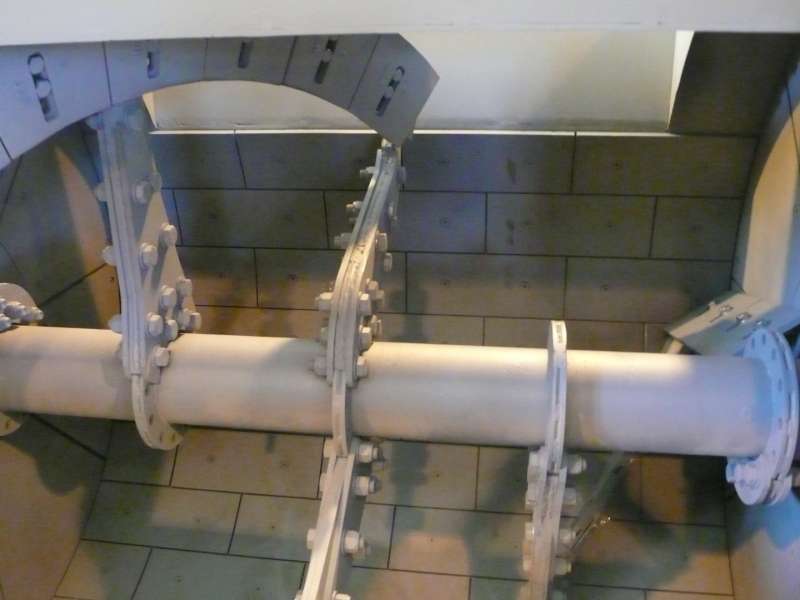

The single-shaft mixers EUROMIX provided of one mixing shaft and two mixing spirals coated of series in special alloy Ny-Hard thickness 22mm; the coating of the sidewalls in HARDOX 400 whereas the bottom in interchangeable panels Ny-Hard thickness 20mm; the central unloading system of the mixed material is handled via 2 oil-dynamic cylinders that allows a fast and complete discharge of the mixed material without residual material not mixed.
Mixing reducer of primary Italian Company with oil bath gears
Skip provided of all the emergency systems required by the regulations in force
TECHNICAL DATA
TECHNICAL DATA | DONNÉS TECHNIQUES | CARATTERISTICHE TECNICHE | U.M. | G.L.F. 750/500 | G.L.F. 1125/750 | G.L.F. 1500/1000 | G.L.F. 1875/1250 | G.L.F. 2250/1500 |
Volumetric capacity | Capacité volumétrique | Capacità volumetrica | Lt. | 1500 | 1500 | 1500 | 1875 | 3000 |
Soft concrete | Béton frais | Resa ciclo calcestruzzo fresco | Lt. | 600 | 900 | 1200 | 1570 | 1800 |
Yield vibrated concrete | Béton vibré | Calcestruzzo reso vibrato | Lt. | 500 | 750 | 1000 | 1250 | 1500 |
Mixing motor power | Moteur de malaxage | Motore mescolazione | Kw | 22 | 30 | 45 | 45 | 55 |
Mixing spirals | Hélices de malaxage | Eliche di mescolazione | Nr. | 2 | 2 | 2 | 2 | 2 |
Opening door | Portillon d’ouverture | Portella di apertura | Nr. | 1 | 1 | 1 | 1 | 1 |

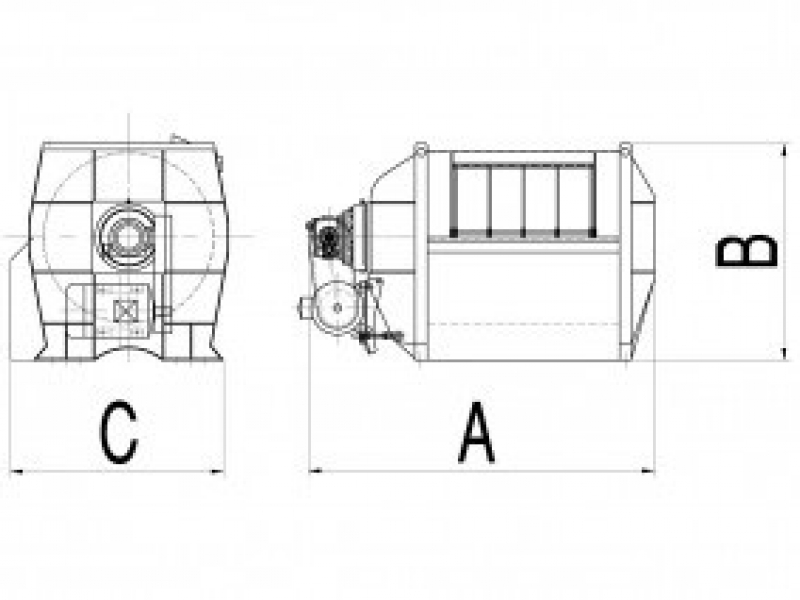

SIZE | ENCOMBREMENTS | MISURE | ||||||
A | 2470 | 2470 | 2860 | 3250 | 3250 | |||
B | 1790 | 1790 | 1790 | 1790 | 1790 | |||
C | 1570 | 1570 | 1570 | 1570 | 1570 |
