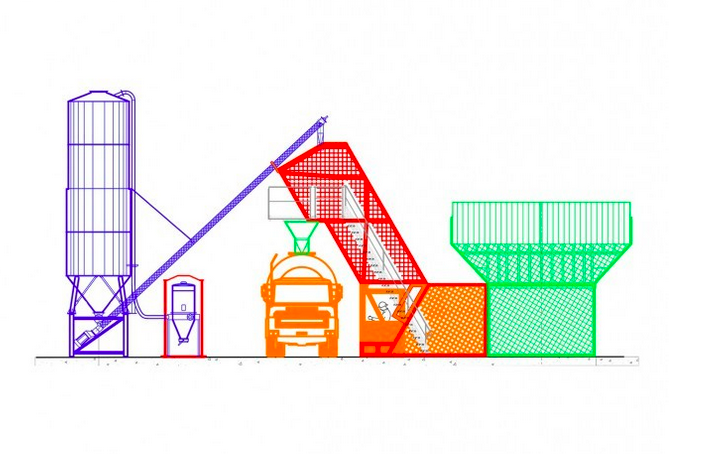

SEMI-MOBILE BATCHING PLANT: TRAVEL MIX
THE SEMI-MOBIL BATCHING PLANT CONCEIVED TO DELIVER TO THE BUILDING YARD A BATCHING PLANT FAST TO ASSEMBLE THAT CAN AS WELL BE QUICKLY DISASSEMBLED FOR BEING DISLOCATED FROM ONE SITE TO THE OTHER – METALLIC PANELS FOR RAMP ALREADY INCLUDED IN THE SUPPLY
TECHNICAL DATA
| Model |
25 |
35 |
45 |
45 |
| Filter (ground type) |
1 |
1 |
1 |
1 |
| Vibration | ||||
| Humidity probe |
1 |
1 |
1 |
1 |
| Cement silos |
1 |
1 |
1 |
1 |
| Cement screw |
1 x Ø 168mm. |
1 x Ø 193mm. |
1 x Ø 219mm. |
1 x Ø 219mm. |
| Double panels for loading ramp | ||||
| Compressor |
300 lt. |
300 lt. |
300 lt. |
300 lt. |
| Additives |
12 lt. |
12 lt. |
12 lt. |
12 lt. |
| Water tank, water pump |
1000 lt. |
1000 lt. |
1000 lt. |
1000 lt. |
| Concrete conveyor with hose |
1 |
1 |
1 |
1 |
| Tank for water dosing |
165 lt. |
200 lt. |
250 lt. |
250 lt. |
| Cement batcher |
260 lt. |
400 lt. |
500 lt. |
500 lt. |
| Planetary mixer |
750/500 |
1125/750 |
1500/1000 |
1500/1000 |
| Service gangway with parapets |
1 |
1 |
1 |
1 |
| Stairs and service floor with parapets |
1 |
1 |
1 |
1 |
| Control cabin |
Manual / Automatic |
Manual / Automatic |
||
| Support structure |
1 |
1 |
1 |
1 |
| Overturning structure |
1 |
1 |
1 |
1 |
| Aggregates stocking |
4×12 mc |
4×12 mc |
4×12 mc |
4×20 mc |
| Real production |
25 |
35 |
45 |
45 |
| Installed power |
45 kW |
60 kW |
74 kW |
74 kW |
